Feature | Specification |
---|---|
Wave Length | 750 nm |
IVISense 750 NHS fluorescent dye is an amine-reactive near-infrared (NIR) fluorochrome for coupling via an N-Hydroxysuccinimide (NHS)-ester linkage to peptides, small molecules, proteins, antibodies or macromolecules. Unit size 5 mg.
IVISense™ 750 fluorescent dyes are ideal for molecular labeling for use in preclinical in vivo imaging applications due to enhanced tissue penetration at this wavelength. IVISense 750 dyes are well suited for the labeling and imaging of proteins, antibodies, and small molecules in a wide range of research areas. The 750 nm fluorescence wavelength is ideal for biological imaging applications using in vivo fluorescence systems but will only work on microscopes, high content imaging and flow cytometry systems that have appropriate light sources and filter sets to accommodate this wavelength.

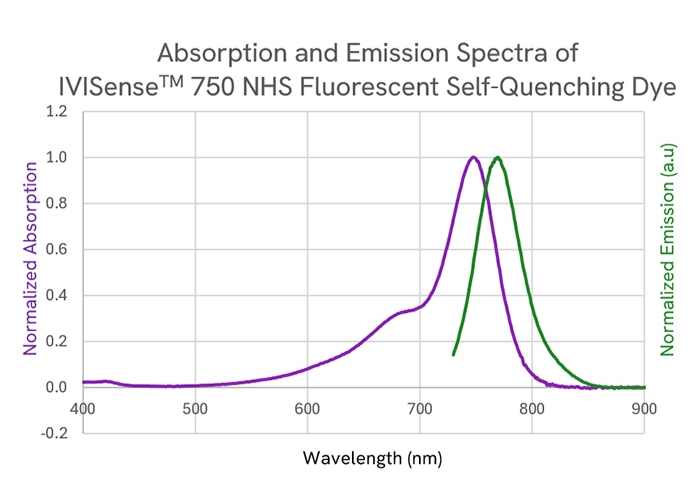

Emission | 775 nm +/- 5 nm |
Absorbance | 750 nm +/- 5 nm |
IVIS Lumina series filter use (ex/em) | 740/790 nm |
IVIS Spectrum 2 series filter use (ex/em) | 745/800 nm |
Part Number | Product | Abs/Em (nm) | |
---|---|---|---|
IVISense NHS FLUORESCENT LABELING KIT | |||
NEV11118 | IVISense 680 NHS | 665/688 | NHS: Suitable for labeling free amines (typically lysine residues) Each kit contains IVISense 680 NHS Fluorescent Dye and everything else needed to perform the labeling reaction and purify the labeled product. |
IVISense NHS FLUORESCENT DYES | |||
NEV11173 NEV11174 |
IVISense 645 NHS | 643/660 | NHS: Suitable for labeling free amines (typically lysine residues) |
NEV11119 NEV11120 |
IVISense 680 NHS | 665/688 | |
NEV11107 NEV11108 |
IVISense 800 NHS | 785/810 | |
IVISense MAL FLUORESCENT DYES | |||
NEV11273 NEV11274 |
IVISense 645 MAL | 643/660 | MAL: Suitable for labeling free thiols (typically cysteine residues) |
NEV11219 NEV11220 |
IVISense 680 MAL | 665/688 | |
IVISense SELF-QUENCHING DYES | |||
NEV10121 NEV10122 |
IVISense 680 NHS | 673/691 | When a protein is labeled with multiple IVISense Self-Quenching Dye molecules, there is a shift in the absorbance of the dye, which will reduce the signal. Only choose IVISense Self-Quenching Dyes if your labeling ratio of dye:protein will be 1:1. If multiple dyes are to be conjugated onto your protein, a non-self-quenching IVISense Dye should be used. NHS and MAL dyes are suitable as noted above. |
NEV10123 NEV10124 |
IVISense 750 NHS | 750/775 | |
NEV11223 NEV11224 |
IVISense 750 MAL | 750/776 |
Brand |
IVISense
|
---|---|
Imaging Modality |
Fluorescence
|
Shipping Conditions |
Shipped in Blue Ice
|
Storage Conditions |
-30 to -16 °C
|
Style |
NHS self-quenching
|
Unit Size |
5 mg
|
Wave Length |
750 nm
|
